FRP pipe machinery





Both available for RTRP and RPMP pipe, including four series:

  • FML-300      Diameter DN50--300
  • FML-1600    Diameter DN200-1600
  • FML-2600    Diameter DN300-2600
  • FML-4000    Diameter DN2600--4000

Features:

  • Numerically controlled
  • Pneumatic resin mixing
  • CVT is available
  • Wet-mortar adding

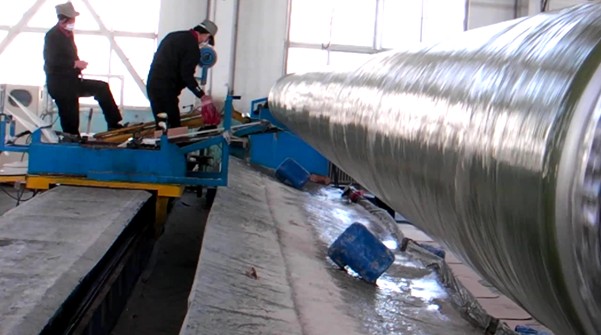

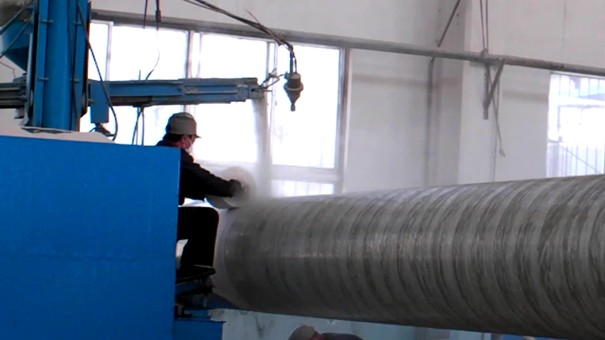

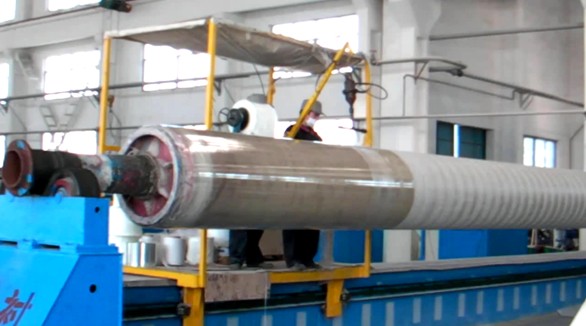

Liner making system                                         Winding system

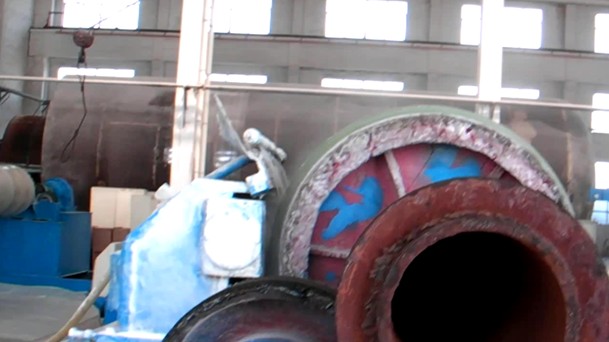

 Mortar adding                                                   Curing station

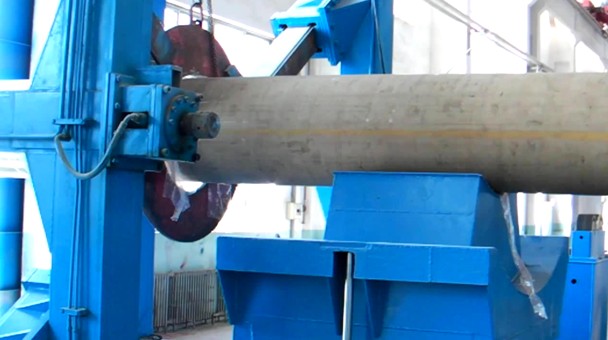

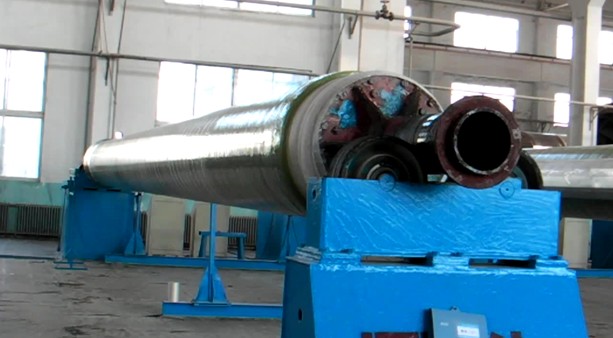

Rectifying system                                              Extracting system

FML-1600 Specifications

Item





1

Pipe diameter (ID)

From DN200mm to DN1600mm

2

Pipe max length

¡Ü12000mm

3

Winding angle

45 º¨C90 º

4

Max thickness of adding silicon sand

8mm /in one time

5

Kind of drive

Chain Drive

6

Control mode

Manual / Semi automatic / Automatic

7

Precision of lining up fiberglass

¡À1 mm

8

Repositioning accuracy

0.2 mm

9

Max speed of pulling fiberglass

90 m/min

10

Max width of fiberglass tape

220 mm

11

Type of adding silicon sand

From bottom

12

Winding type

Reciprocating cross and hoop direction

13

Winding roving capacity

60 pcs

14

Resin type

Unsaturated polyester

15

Cure type of pipe

Normal temperature or IR

16

Demoulding type of pipe

Hydraulic control

17

Frame of fiberglass

Tension adjustable

18

Rated pressure of hydraulic pressure system

120 bar

19

Max production capacity

¡Ý1000 kg/h

20

Total power

168 KW


FML-2600 Specifications


Item

1

Pipe diameter (ID)

From DN300mm to DN2600mm

2

Pipe max length

¡Ü12000mm

3

Winding angle

45 º¨C90 º

4

Max thickness of adding silicon sand

8mm /in one time

5

Kind of drive

Chain Drive

6

Control mode

Manual / Semi automatic / Automatic

7

Precision of lining up fiberglass

¡À1 mm

8

Repositioning accuracy

0.2 mm

9

Max speed of pulling fiberglass

90 m/min

10

Max width of fiberglass tape

220 mm

11

Type of adding silicon sand

From bottom

12

Winding type

Reciprocating cross and hoop direction

13

Winding roving capacity

60 pcs

14

Resin type

Unsaturated polyester

15

Cure type of pipe

Normal temperature or IR

16

Demoulding type of pipe

Hydraulic control

17

Frame of fiberglass

Tension adjustable

18

Rated pressure of hydraulic pressure system

120 bar

19

Max production capacity

¡Ý1000 kg/h

20

Total power

220 KW
